Description
120/230VAC & 24VDC (10W), 2NM, IP66, 360°

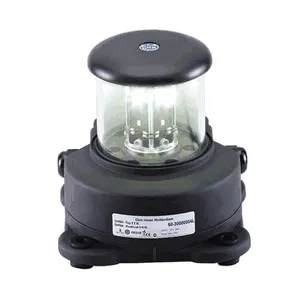

The DHR73 LED Signaling light has a built-in power supply that may be connected to 90-265VAC or 24VDC.
Another distinctive feature is the ability for the user to configure the signal characteristics including four different flashing or continuous mode.
Leading brand LEDs and highest quality components assure the most robust and durable signaling light on the market.
Zero noise interference, excellent thermal management and 50.000 hour lifetime results in an exceptionally reliable product with minimal maintenance costs.
Models available in Green, Red, White, Yellow, and Blue.
Typical uses for signaling lights include: general signaling, dangerous cargo, vessels carrying out work, fire fighting and police boats.
Features
- Multi voltage input:(120-230VAC and/or 24VDC)
- User settable signalfrequency via dipswitch
- Chromatecorrosion-resistant aluminum housing
- Durable UV-resistantpowder coat gloss-white finish
- Visibility from 2 to 5NM
- Toughened borosilicatewell glass lens
- Epoxy potted LED driver
Specifications
- Certifications & Compliance: IMO, Colreg 72, MED 96/98/EC, EN14744, UL1104 & USCG
- Output Color: Blue
- Lifetime Hours: 50,000 hrs
- Class: I, (grounded)/III
- Input Voltage: 90-265VAC and/or 19-29V
- Dimensions: See dimensional drawing
- Warranty: 3 Years
- Power Consumption: 10W
- Lens Material: Boroscilicate well glass
- Ingress Protection: IP67
- Mounting Method: Base-mount
- Install Location: Roof top or mast
- Electrical Protections: Transient Voltage, ESD Protection, Current Regulation
- Housing Finish/Material: Gloss white powder coat/anodized aluminum housing
- Driver: Integrated
Click here for Dimensional Drawing
