Description

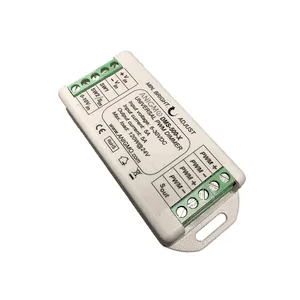

• DMS-500 Universal Low Voltage LED Dimmer, 5A
• 6-30VDC or 0-10V Control Input
• With flicker-free, full range dimming performance, the DMS Series Universal Low Voltage LED Dimmer can dim most 12V-24V LED bulbs, flexible or rigid LED strips, and halogen/incandescent bulbs. We have found it also works very well with many types of LED-engineered fixtures, including our Sigma Series 2-wire LED fixtures.

Features:

• Small compact form factor
• High frequency PWM delivers flicker-free lighting at all levels
• Smoothly dims typically hard to dim LED bulbs and flexible or rigid strips
• Safety features include Overheat, No-Load, Overload, & Short Circuit protection
• Can be controlled with a variety of input devices including momentary switches
• Accepts 0-10V (source) input signal from 3rd party centralized control systems
• Simple synchronization of multiple units for controlling larger loads
• Minimum brightness adjustable with built-in potentiometer
• Safe & reliable screw terminals

Specifications:

• Housing Finish/Material: White/Plastic
• Dimensions: 3.75 inch (96mm) l x 1.50 inch (40mm) w x 0.75 inch (20mm) h
• Input Voltage: 6-30VDC (or stable 0-10V source)
• Stand by current: <1>
• Load Rating: 5A
• Max Operating Temperature: 0° C – +50° C
• Dimmer Compatibility: Most LED bulbs, LED strips, LED courtesy lights, Sigma, more
• Dimmer Control Interface: Single or double momentary push-button, potentiometer
• Dimming Range: 0-100% with most products
• Mounting Method: Two screws, double-side tape, or wire ties
• Install Location: Dry
• Ingress Protection: IP20
• Electrical Protections: Overheat, no-load, overload, short-circuit
• Certifications & Compliance: CE, ROHS
• Warranty: 5 Years

ATTENTION CALIFORNIA RESIDENTS

WARNING: Cancer and Reproductive Harm

Click here for Dimensional Drawing
