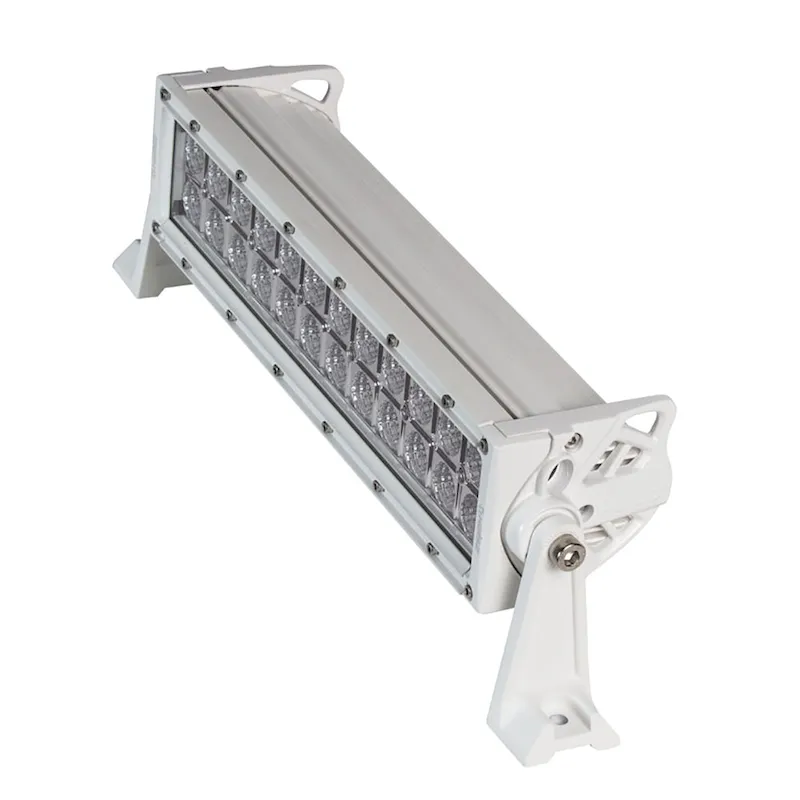

HEISE Dual Row LED Light Bar – 14″ [HE-DR14]

Description

Dual Row LED Light Bar – 14″

SPECS

• Input Voltage: 10-30V DC
• Power Consumption: 72W
• (24-3W CREE LEDs)
• Raw Lumens: 5760
• LUX @ 10M: 466
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood(90°)/Spot(8°)

CONSTRUCTION

• Housing Material: Die-cast Aluminum Housing
• Housing Color: Black
• Lens Material: PC
• Mounting Bracket: Die-cast Aluminum
• Length of Bar without Mounting Brackets: 14″
• Hole Dimensions:

• Brackets turned inward – 13.50″
• Brackets turned outward – 14.75″
• Mounting Bolt Drill – .25″

• Height of Light Bar Itself: 3″
• Depth of Light Bar Itself: 3.50″
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: -40°C to +60°C
• Current Consumption: 3.7 amps @ 13.8 volts
• IP Rating: IP68
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Specifications:

• Beam Pattern: Spot-Flood Combo
• Length (Inches): 14″
• Housing: Black
• Voltage – Input Range (Volts): 12/24v
• Box Dimensions: 6″H x 7″W x 19″L WT: 5.4 lbs
• UPC: 086429297955
