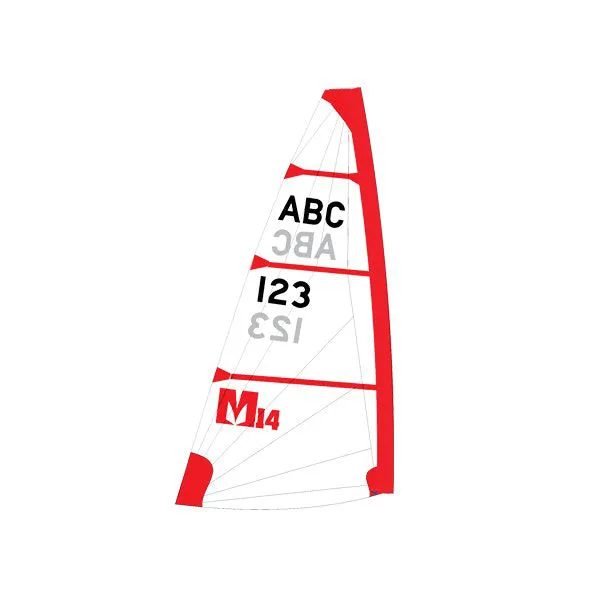

Melges 14 Sail – Red

Original price was: $700.00.Current price is: $140.00.
Next Product Image

Zipwake Interceptor 300 S Chine Port 11.81″ (300mm)

Original price was: $946.00.Current price is: $189.20.

SKU: SK0025726-U Category: Tag:

Description

Chine interceptors provide a unique means of maximizing pitch and roll motion control by utilizing the furthest outboard surfaces of the hull bottom for lift generation. As a rule, the lift effect of a chine interceptor matches the lift of a straight interceptor one size larger mounted inboard of the chine, making them the go-to choice when selecting interceptors

Features:

  • Zipwake is a fully automatic and active trim control system
  • Dynamically eliminates uncomfortable and dangerous boat pitch and roll
  • Automatically minimizes wave resistance and saves fuel
  • Built-in quality, simplicity and easy expansion, yet affordable
  • 5-10 times faster than conventional trim tabs
  • Built-in GPS, 3D-Gyro and 3D- Accelerometer.

Specifications:

Name

Description

Certifications & Compliance

CE, FCC

Max Boat Speed

60 knots

Blade Stroke

1.2″ (30mm)

Blade Rate

0.8 in/s (20 mm/s)

Dimensions

4.60″(Width), 2.20″(Height), 12.00″(Length)

Thru-Hull Cable Fitting

Concealed or above waterline

Servo Actuator

SU-S

Cable Material

PUR

Connector

M12 5-pin circular

Connector Diameter

0.57″ (14.5 mm)

Cable Length

10′ (3 m), extendable up to 20′ (6 m)

Voltage

12-32VDC

Power Consumption

25W max

Ingress Protection

IP68, 16′ (5 m)

Operating Temperature

+32° to +104°F (0° to +40°C)

Storage Temperature

-40° to +194°F (-40° to +90°C)

Approximate Ship Weight (lbs)

8
Weight 8 lbs
Dimensions 12 × 4.60 × 2.20 in
